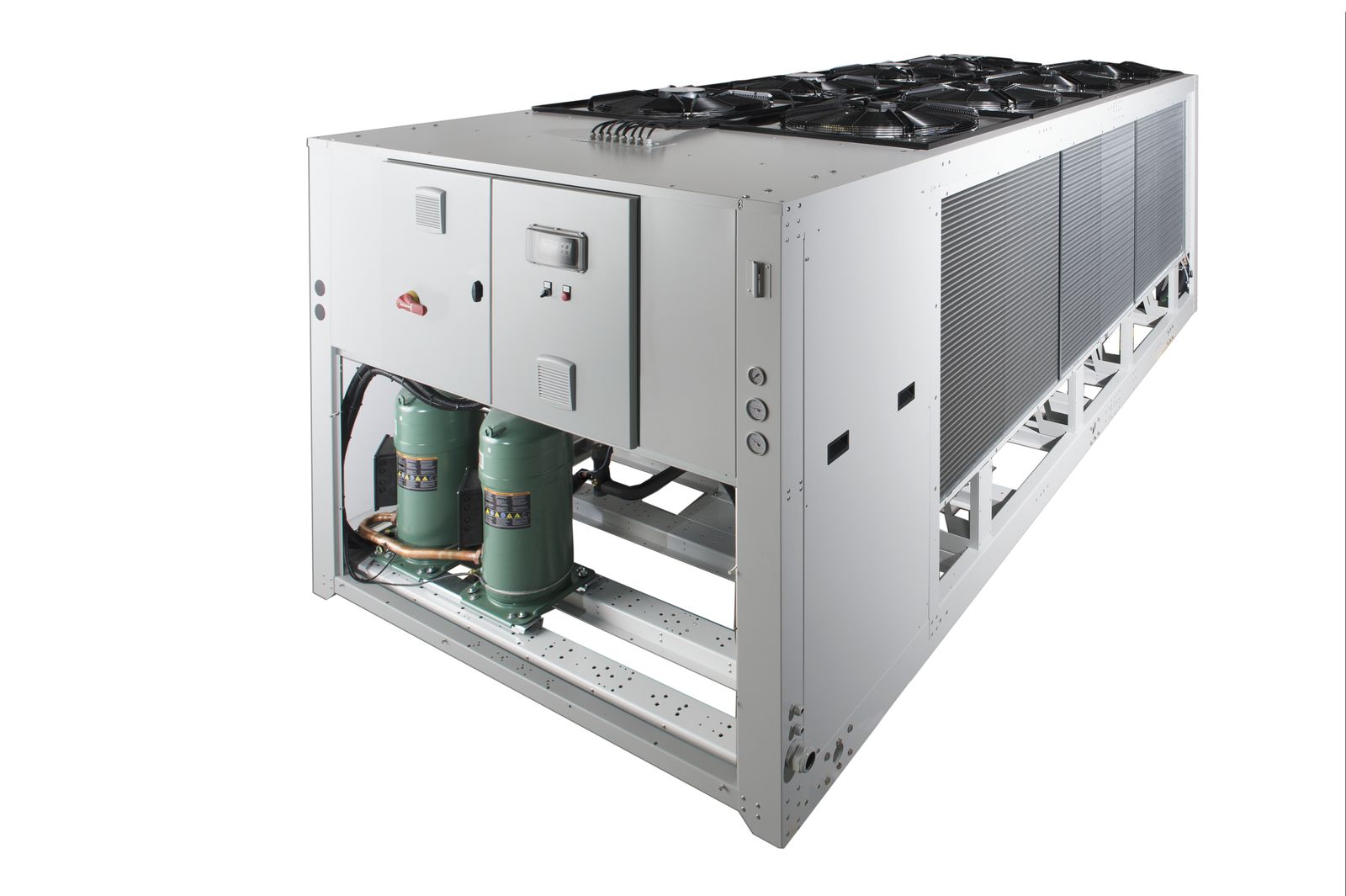

The CWB FC series is designed specifically for industrial processes. Energy saving and reduced cooling costs are the key benefits of a free cooling integrated chiller. cooling integrated. Chiller and free cooling hydraulic sections cooling are completely separated: this allows to maximize the regulation of the two working modes. The range includes 8 models with cooling capacity from 80 kW to 240 kW and it is designed for outdoor installations.
- Copper brazed stainless steel plates heat exchanger
- Electronic expansion valve
- Three way valve and actuator to optimize the free cooling mode

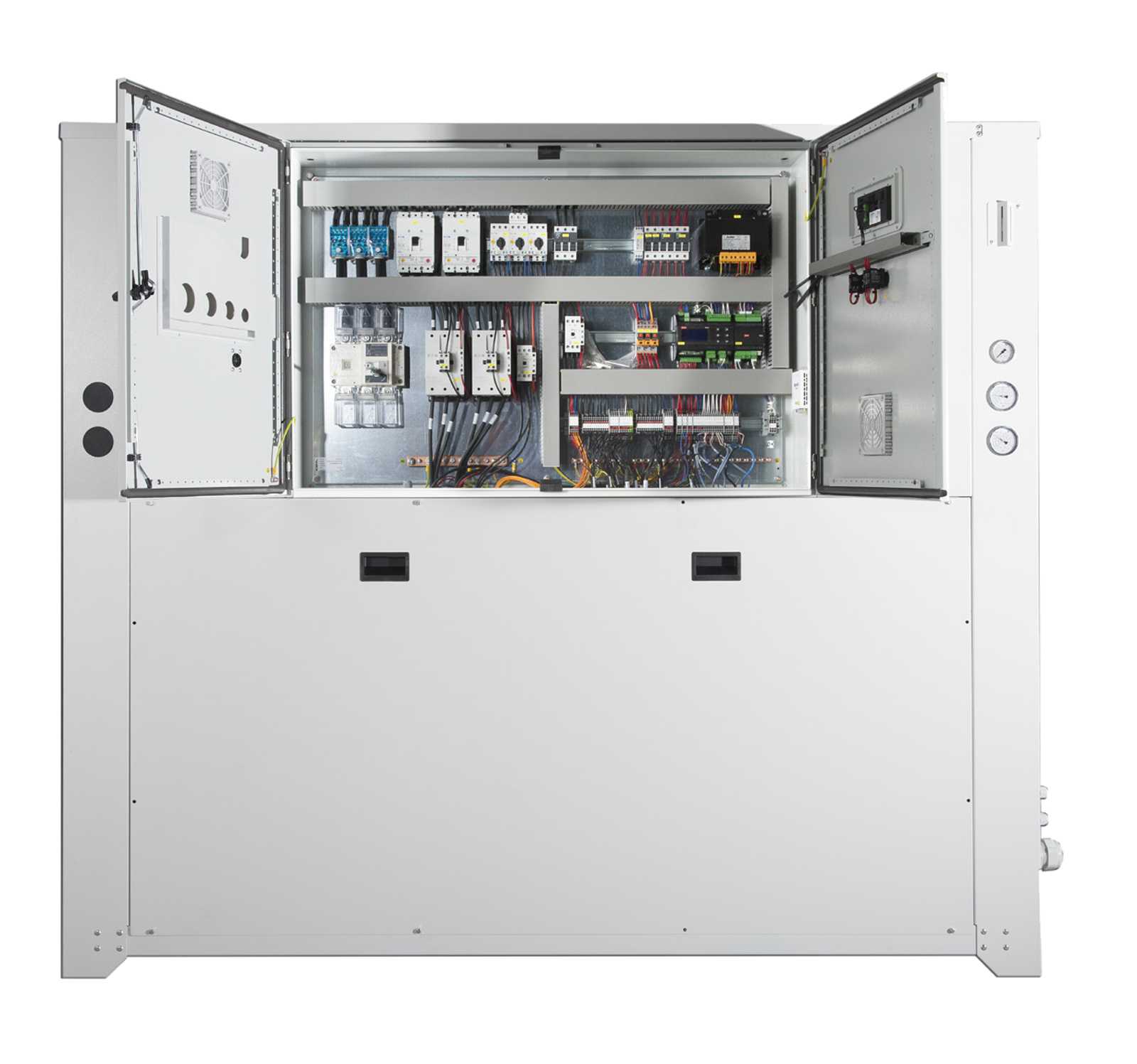

- Microprocessor controller
- Water strainer
- Axial fans
- Microprocessor controller
- Water strainer
- RS485 port

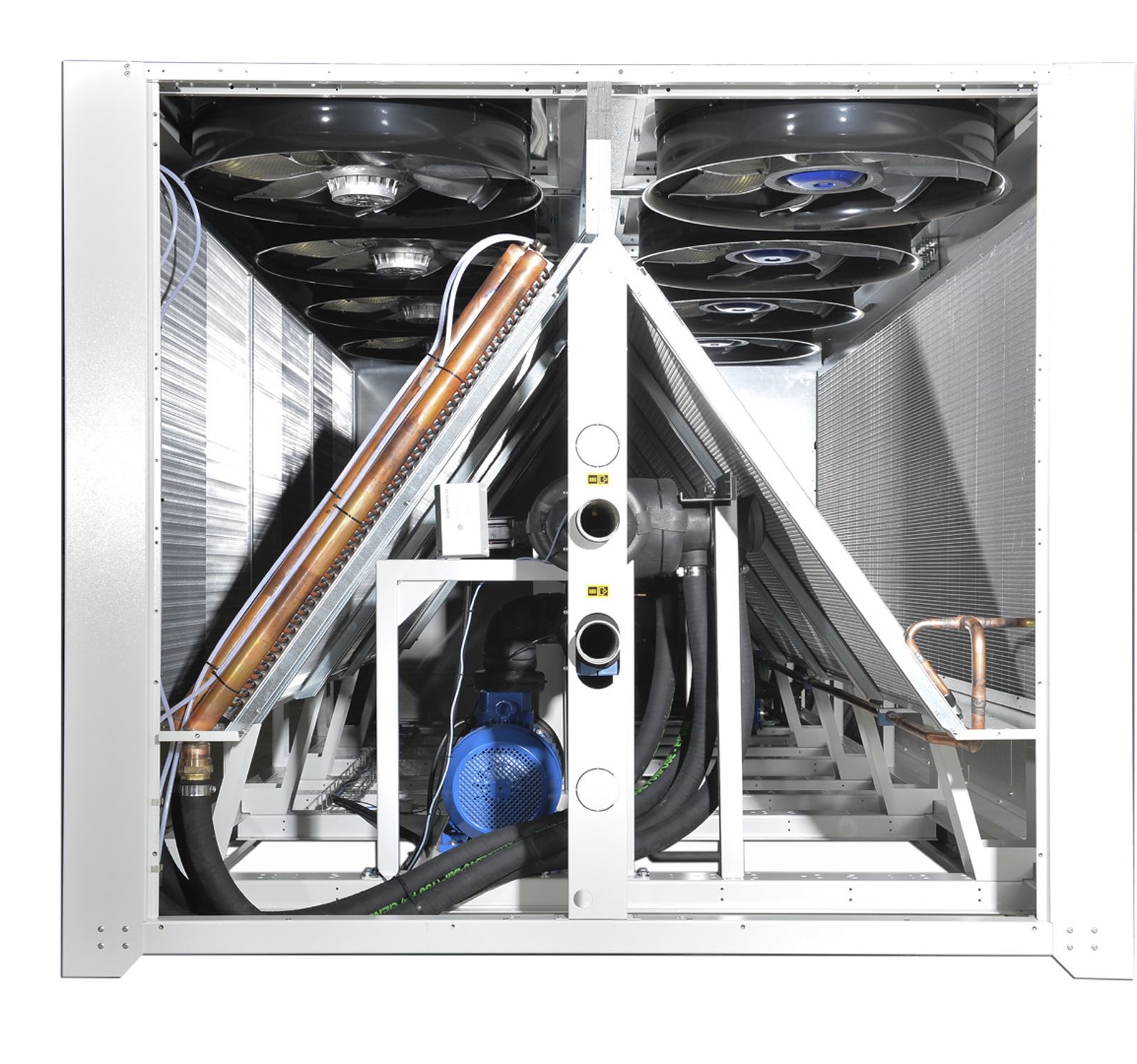

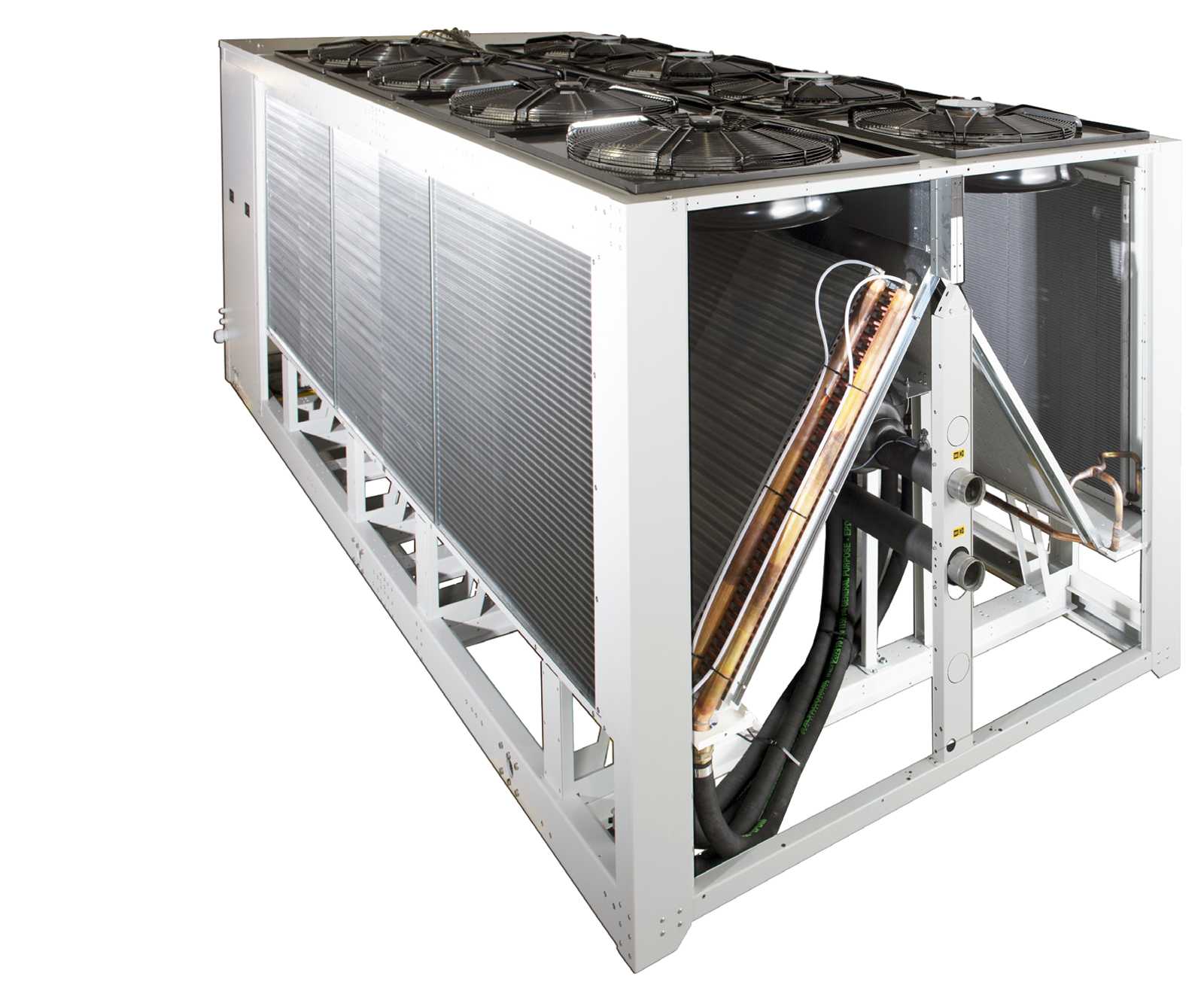

FREE COOLING SECTION
- Copper tubes and aluminium fins water coils
- On / off axial fans
CHILLER SECTION
- Scroll hermetic compressors
- Microchannel aluminium coils
- Axial fans with electronic speed regulation
The structure is made up of a galvanized steel frame with polyester powder coating,
making the CWB FC suitable for outdoor installation and for protection in harsh environments..
The compressor cabinet is separate from the fan’s section and is accessible on three sides to make control and maintenance easy. The hydraulic section is also easily accessible.
