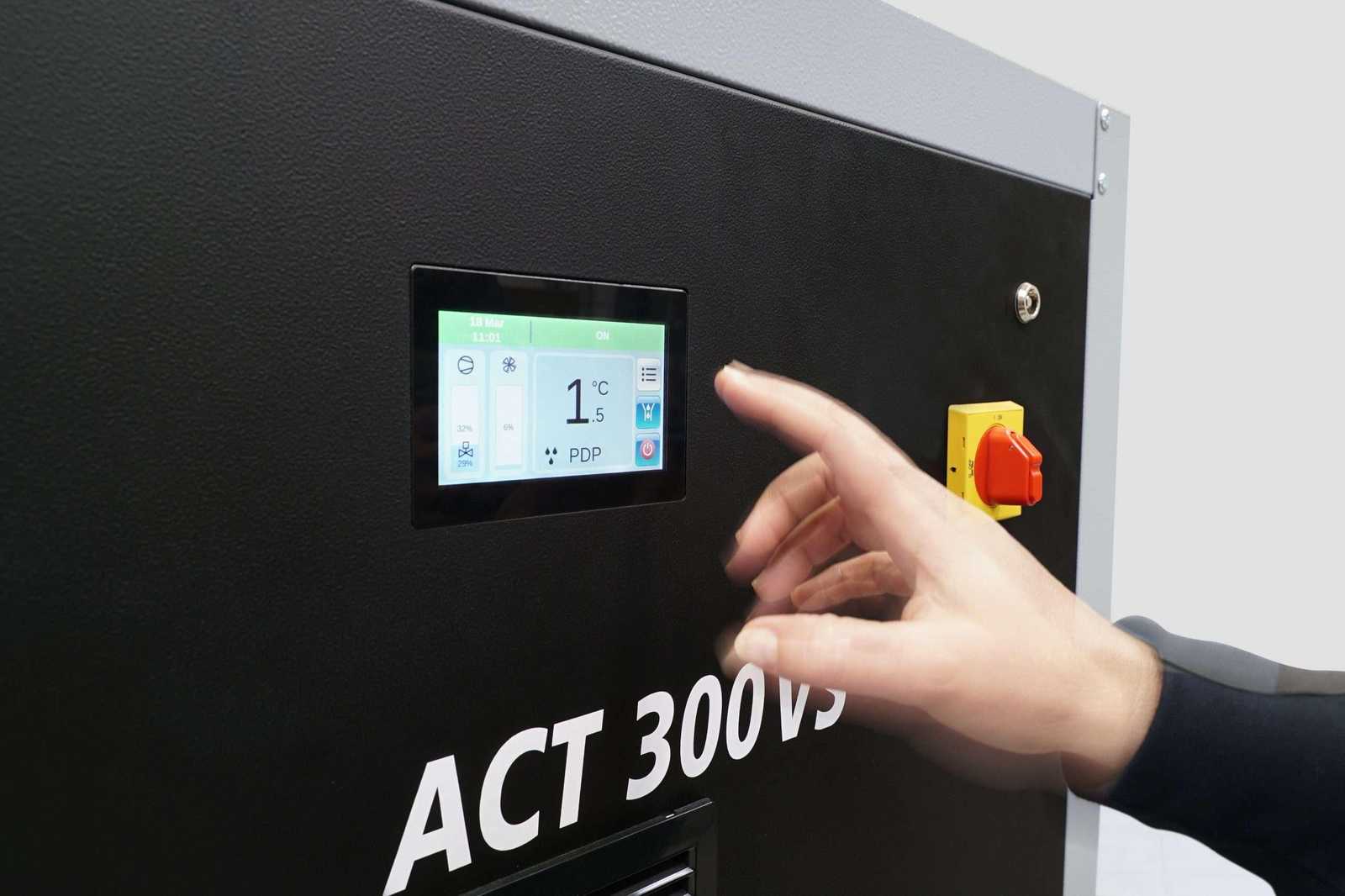

ACT VS ENERGY SAVING is the most advanced Friulair’s refrigeration dryer range. The ACT VS range is equipped with the latest functions and energy saving technology, including a touch screen electronic controller which manages the machine’s operating parameters, controls the refrigerant’s compression and condensation speed using dedicated inverters. This allows the dryer to adapt its operation, and related consumption, to the energy demand to maintain a +3°C dew point. To achieve energy savings, the range is equipped with a standard capacitive condensate drain which prevents the expulsion of compressed air together with condensed water. ACT VS has the advantages of the ACT PREMIUM range, and it lowers running costs compared to the standard version, which can be easily calculated by using the selection software developed for the energy-saving range.

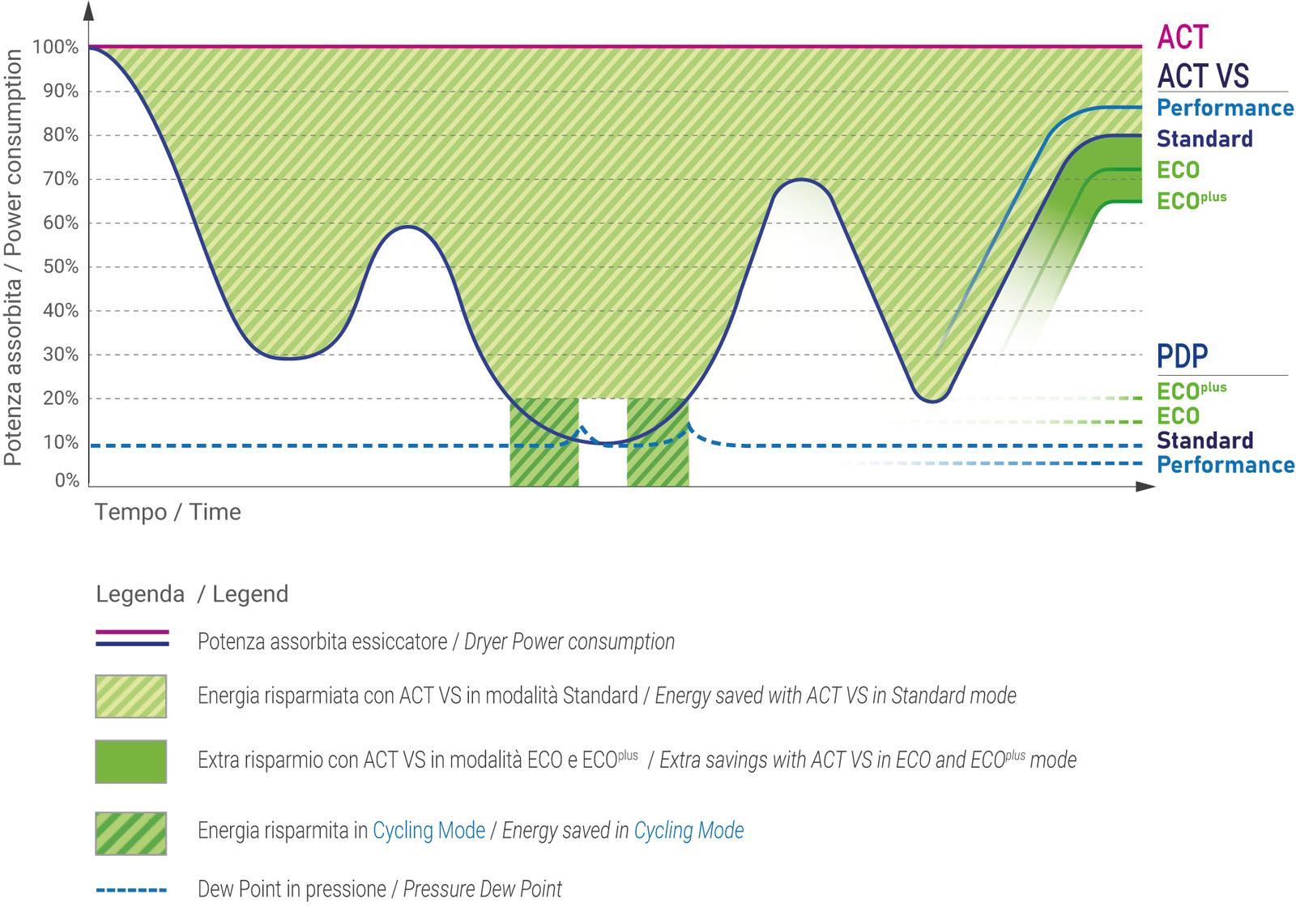

The graph compares the power consumption of the ACT VS dryer to the equivalent standard ACT model at different load conditions. The various operating modes of the ACT VS dryer which can be set directly from the controller display are represented on the right of the graph
MAXIMUM WORKING CONDITIONS
- Ambient temperature: + 45°C
- Inlet air pressure: 14 barg
- Inlet air temperature: + 70°C
Model | Refrigerant | Air flow | Power Supply | Connections | ||
[Type] | [m3/h] | [l/min] | [scfm] | [Ph/Volt/Fr] | [ Ø ] | |
ACT 210 VS | R 134.a | 1 260 | 21 000 | 742 | DN80 PN16 | 3/400/50-60 |
ACT 300 VS | R 407C | 1 800 | 30 000 | 1 060 | DN80 PN16 | 3/400/50-60 |
ACT 360 VS | R 407C | 2 208 | 36 800 | 1 300 | DN80 PN16 | 3/400/50-60 |
ACT 400 VS | R 407C | 2 400 | 40 000 | 1 413 | DN100 PN16 | 3/400/50-60 |
ACT 500 VS | R 407C | 3 000 | 50 000 | 1 766 | DN100 PN16 | 3/400/50-60 |
ACT 600 VS | R 407C | 3 600 | 60 000 | 2 119 | DN100 PN16 | 3/400/50-60 |
ACT 720 VS | R 407C | 4 416 | 73 600 | 2 600 | DN100 PN16 | 3/400/50-60 |
ACT 900 VS | R 407C | 5 400 | 90 000 | 3 178 | DN150 PN16 | 3/400/50-60 |
ACT 1100 VS | R 407C | 6 624 | 110 400 | 3 900 | DN150 PN16 | 3/400/50-60 |
ACT 1200 VS | R 407C | 7 200 | 120 000 | 4 238 | DN200 PN16 | 3/400/50-60 |
ACT 1500 VS | R 407C | 8 832 | 147 200 | 5 200 | DN200 PN16 | 3/400/50-60 |
ACT 1800 VS | R 407C | 10 800 | 180 000 | 6 360 | 3/400/50 | DN200 PN16 |
ACT 2200 VS | R 407C | 13 248 | 220 800 | 7 800 | 3/400/50 | DN200 PN16 |
ACT 2400 VS | R 407C | 14 400 | 240 000 | 8 476 | 3/400/50 | DN250 PN16 |
ACT 3000 VS | R 407C | 17 664 | 294 400 | 10 400 | 3/400/50 | DN250 PN16 |
Data refer to the following nominal condition: ambient temperature + 25 °C; inlet air pressure 7 barg; inlet air temperature +35 °C.
- ALU DRY aluminium heat exchanger
- High-efficiency compressor
- Generously sized condenser unit
- Water pressure switch valve (water-cooled)
- DMC55 digital controller RS485 modbus
- Refrigerant compressor thermal or thermo-ammeter protection
- Automatic condensation pressure control
- High compressor temperature protection
- Refrigerant compressor phase sequence relay protection (3ph models)
- Refrigerant high- and low-pressure safety pressure switches
- Electronic expansion valve
- Electronic bypass valve
- Electronic level condensation drain
- Compressor crankcase heater (3ph models only)
- On request models with different Power Supply and different connections [Ph/V/Hz]
