FCT Industrial Thermal Mass Dryers

REFRIGERATION DRYERS WITH LOW GWP R513A REFRIGERANT

Flow rate: 21 ÷ 8 830 m³/h

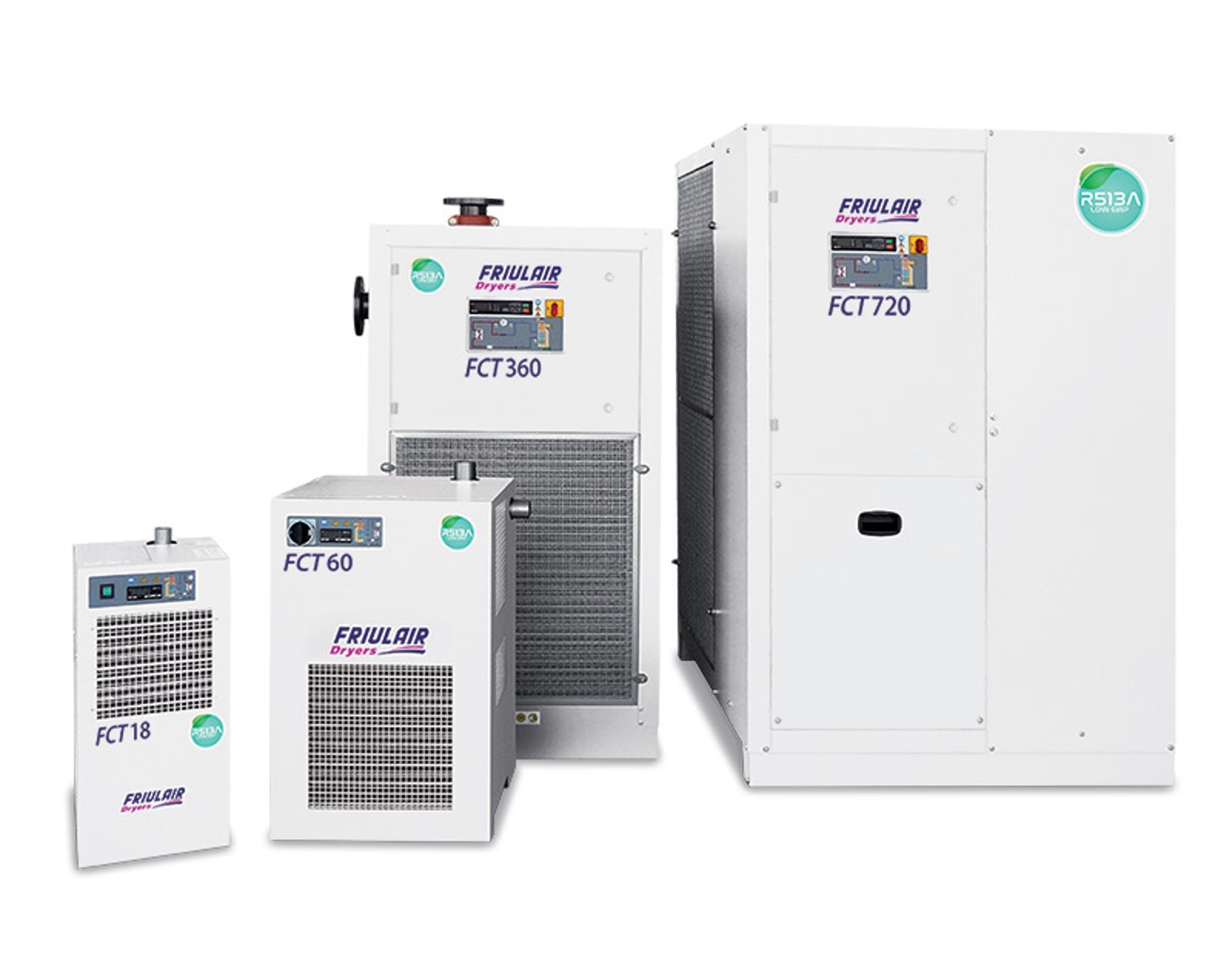

The FCT ECO-FRIENDLY range of refrigerant cycle dryers has been developed recently to replace traditional refrigerants with the latest generation...

The FCT ECO-FRIENDLY range of refrigerant cycle dryers has been developed recently to replace traditional refrigerants with the latest generation. The R513a refrigerant gas has a low environmental impact (GWP = 613 CO2 ton/eq), under applicable European and international regulations. Based on the tried and tested ACT range, it has a low energy consumption, even under extreme load conditions. This is due to the ALU-DRY exchanger reduced pressure drop, latest generation compressors, control valve, hot gas by-pass and capacitive drains (standard from FCT180 and optional for lower sizes). The +3°C dew point is maintained even when operating conditions change.

The range standard electronic controllers are equipped with an RS485 port for connectivity to the company’s management system (INDUSTRY 4.0 ready). Water-cooled version on demand from FCT55.

MAXIMUM WORKING CONDITIONS

Ambient temperature: + 50°C
Inlet air pressure: 16 barg (ACT3÷18) - 14 barg
Inlet air temperature: + 70°C

Model	Refrigerant		Air flow		Power Supply	Connections
	[Type]	[m³/h]	[l/min]	[scfm]	[Ph/Volt/Fr]	[ Ø ]
FCT 3	R 513A	21	350	12	1/230/50-60	G 1/2” BSP-F
FCT 5	R 513A	33	550	19	1/230/50-60	G 1/2” BSP-F
FCT 8	R 513A	51	850	30	1/230/50-60	G 1/2” BSP-F
FCT 12	R 513A	72	1 200	42	1/230/50-60	G 1/2” BSP-F
FCT 18	R 513A	108	1 800	64	1/230/50-60	G 1” BSP-F
FCT 23	R 513A	138	2 300	81	1/230/50	G 1” BSP-F
FCT 30	R 513A	186	3 100	109	1/230/50	G 1.1/4” BSP-F
FCT 40	R 513A	240	4 000	141	1/230/50	G 1.1/4” BSP-F
FCT 55	R 513A	330	5 500	194	1/230/50	G 1.1/2” BSP-F
FCT 60	R 513A	372	6 200	219	1/230/50	G 1.1/2” BSP-F
FCT 80	R 513A	486	8 100	286	1/230/50	G 2” BSP-F
FCT 100	R 513A	630	10 500	371	1/230/50	G 2” BSP-F
FCT 120 3~	R 513A	750	12 500	441	3/400/50	G 2.1/2” BSP-F
FCT 140 3~	R 513A	870	14 500	512	3/400/50	G 2.1/2” BSP-F
FCT 160 3~	R 513A	960	16 000	565	3/400/50	G 2.1/2” BSP-F
FCT 180	R 513A	1 080	18 000	636	3/400/50	DN80 PN16
FCT 210	R 513A	1 260	21 000	742	3/400/50	DN80 PN16
FCT 250	R 513A	1 500	25 000	883	3/400/50	DN80 PN16
FCT 300	R 513A	1 800	30 000	1 060	3/400/50	DN80 PN16
FCT 360	R 513A	2 208	36 800	1 300	3/400/50	DN80 PN16
FCT 400	R 513A	2 400	40 000	1 413	3/400/50	DN100 PN16
FCT 500	R 513A	3 000	50 000	1 766	3/400/50	DN100 PN16
FCT 600	R 513A	3 600	60 000	2 119	3/400/50	DN100 PN16
FCT 720	R 513A	4 416	73 600	2 600	3/400/50	DN100 PN16
FCT 900	R 513A	5 400	90 000	3 178	3/400/50	DN150 PN16
FCT 1100	R 513A	6 624	110 400	3 900	3/400/50	DN150 PN16
FCT 1200	R 513A	7 200	120 000	4 238	3/400/50	DN200 PN16
FCT 1500	R 513A	8 832	147 200	5 200	3/400/50	DN200 PN16

Data refer to the following nominal condition: ambient temperature + 25 °C; inlet air pressure 7 barg; inlet air temperature +35 °C.

ALU DRY aluminium heat exchanger
High-efficiency compressor
Generously sized condenser unit
Water pressure switch valve (water-cooled) (from FCT55)
DMC34 digital controller RS485 modbus
Refrigerant compressor thermal or thermo-ammeter protection
Automatic condensation pressure control
High compressor temperature protection (from FCT55)
Refrigerant compressor phase sequence relay protection (3ph models)
Refrigerant high- and low-pressure safety pressure switches (from FCT80)
Hot gas bypass valve
Timed condensation drain FCT 3/160
Electronic level condensation drain FCT 180/500
Compressor crankcase heater (3ph models only)
On request models with different Power Supply and different connections [Ph/V/Hz]
For FCT 180÷3000: Counter-flanges and EN 1092-1 gaskets included.
