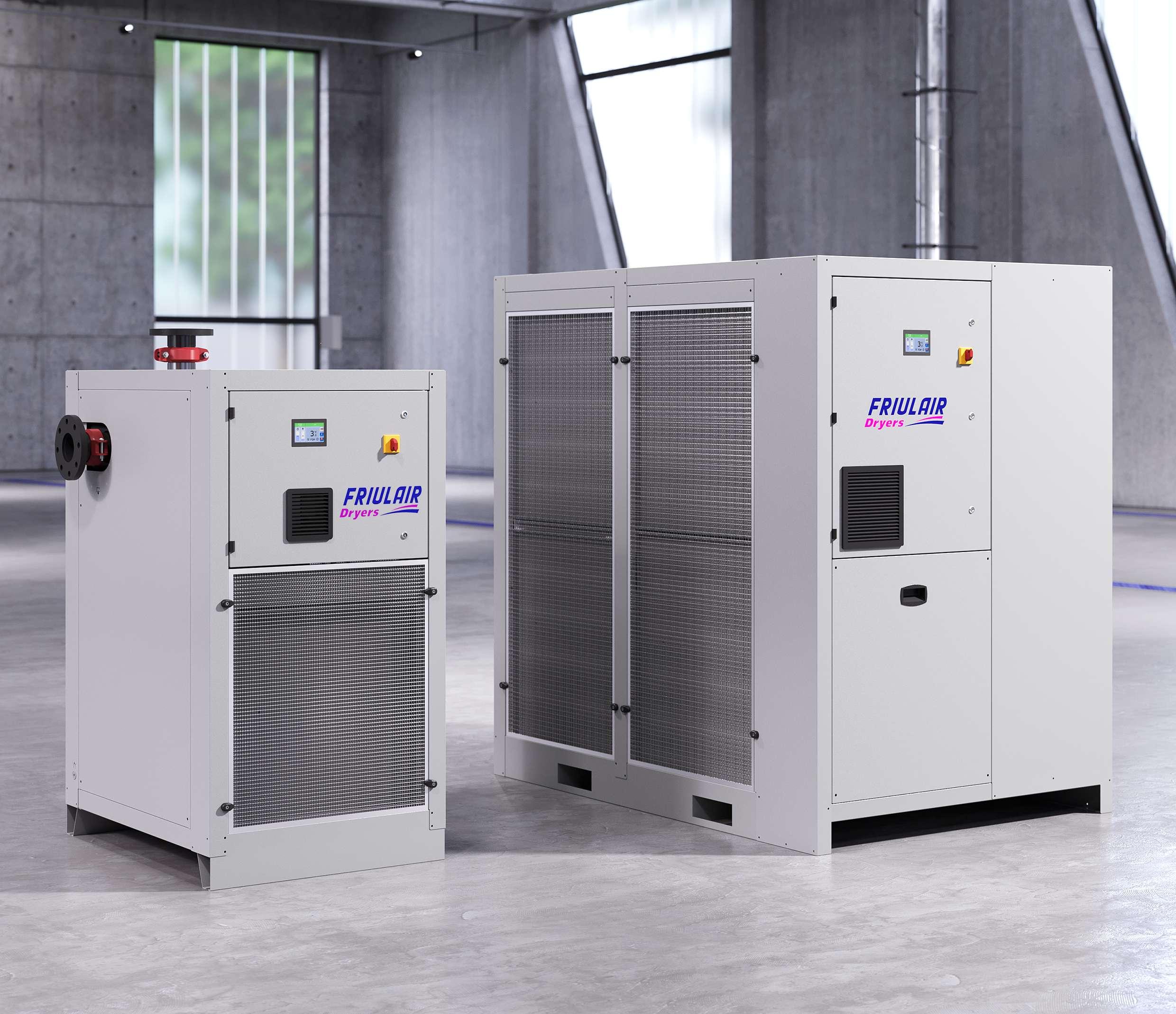

FCT-VS Variable Speed Thermal Mass Dryers

Variable speed refrigeration dryers with R513A refrigerant

Flow rate: 1 260 ÷ 8 832 m³/h

The FCT VS range was created to meet the latest energy saving and low environmental impact market demands. This range combines the experience...

The FCT VS range was created to meet the latest energy saving and low environmental impact market demands. This range combines the experience gained with environmentally friendly gases used in the FCT range and the inverter technology (Variable Speed) applied to the ACT VS; this brings the advantages of both ranges in a single solution. The low environmental impact R513A refrigerant gas combined with a variable speed operation is the height of technological evolution and maximises respect for the environment. By using inverters, it is possible to modulate the electrical power input by the scroll compressor and fans according to the thermal load required by the user.

Main advantages are:

greater environmental friendliness;
reduced running cost;
optimised consumption and performance under all load conditions.

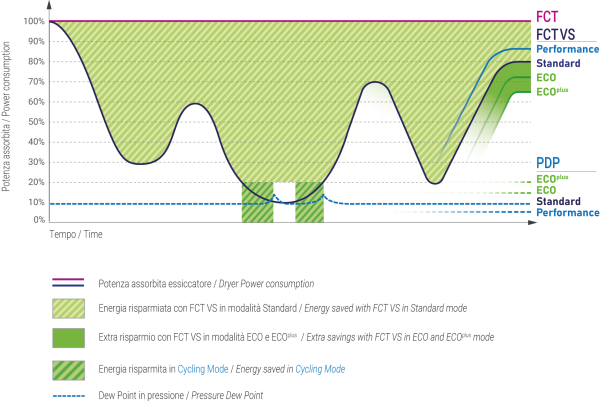

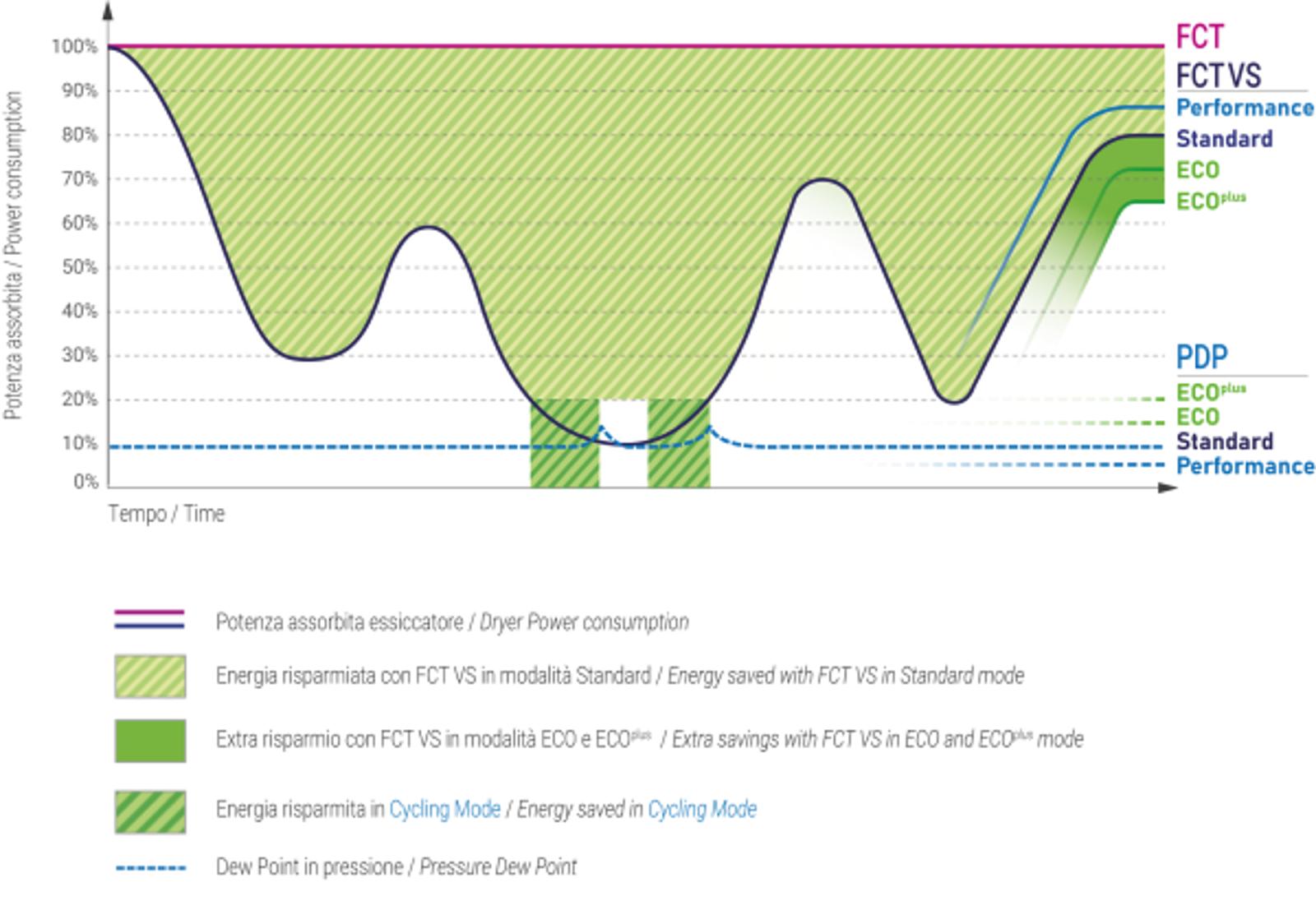

The graph compares the power consumption of the FCT VS dryer to the equivalent standard FCT model at different load conditions. The various operating modes of the FCT VS dryer which can be set directly from the controller display are represented on the right of the graph.

MAXIMUM WORKING CONDITIONS

Ambient temperature: + 45°C
Inlet air pressure: 14 barg
Inlet air temperature: + 70°C

Model	Refrigerant [Type]	[m³/h]	Flow rate [l/min]	[scfm]	Power Supply [Ph/Volt/Fr]	Connections [ Ø ]
FCT 210 VS	R 513A	1 260	21 000	742	3/400/50-60	DN80 PN16
FCT 300 VS	R 513A	1 800	30 000	1 060	3/400/50-60	DN80 PN16
FCT 360 VS	R 513A	2 208	36 800	1 300	3/400/50-60	DN80 PN16
FCT 400 VS	R 513A	2 400	40 000	1 413	3/400/50-60	DN100 PN16
FCT 500 VS	R 513A	3 000	50 000	1 766	3/400/50-60	DN100 PN16
FCT 600 VS	R 513A	3 600	60 000	2 119	3/400/50-60	DN100 PN16
FCT 720 VS	R 513A	4 416	73 600	2 600	3/400/50-60	DN100 PN16
FCT 900 VS	R 513A	5 400	90 000	3 178	3/400/50	DN150 PN16
FCT 1100 VS	R 513A	6 624	110 400	3 900	3/400/50	DN150 PN16
FCT 1200 VS	R 513A	7 200	120 000	4 238	3/400/50	DN200 PN16
FCT 1500 VS	R 513A	8 832	147 200	5 200	3/400/50	DN200 PN16

Data refer to the following nominal condition: ambient temperature + 25 °C; inlet air pressure 7 barg; inlet air temperature +35 °C.

ALU DRY aluminium heat exchanger
High-efficiency compressor
Generously sized condenser unit
Water pressure switch valve (water-cooled)
DMC34 digital controller RS485 modbus
Refrigerant compressor thermal or thermo-ammeter protection
Automatic condensation pressure control
High compressor temperature protection
Refrigerant compressor phase sequence relay protection (3ph models)
Refrigerant high- and low-pressure safety pressure switches
Electronic expansion valve
Electronic bypass valve
Electronic level condensation drain
Compressor crankcase heater (3ph models only)
On request models with different Power Supply and different connections [Ph/V/Hz]
Counter-flanges and EN 1092-1 gaskets included.
